COLOUR RANGE


slate

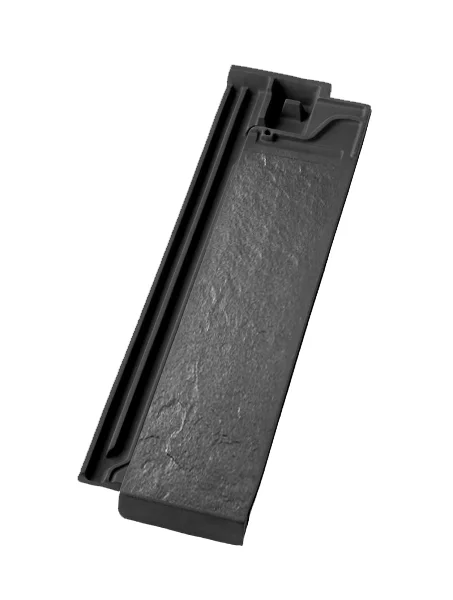

TECHNICAL INFORMATION

Tile Dimensions: 48,7x25,1 cm
Tiles Weight: 4 kg
Batten measures: 38.5 cm
Roof Tiles per SQM: approx. 12,5


Click on BIM/CAD to request the respective documents


DOWNLOADS

Slate Brochure

Slate Flyer

Technical



FITTINGS

3-way apex

Unit weight: 3.8 kg
Width: 43.5 cm
Height: 10.5 cm
Length: 37.5 cm

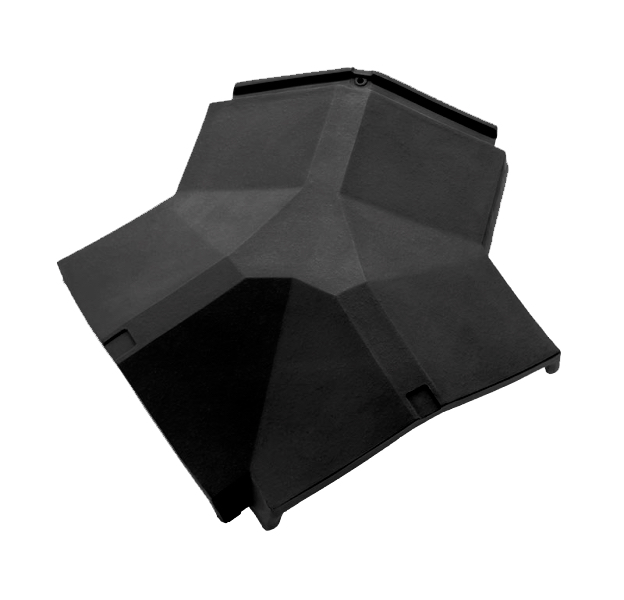

4-way apex

Unit weight: 3.4 kg
Width: 32 cm
Height: 8 cm
Length: 32 cm

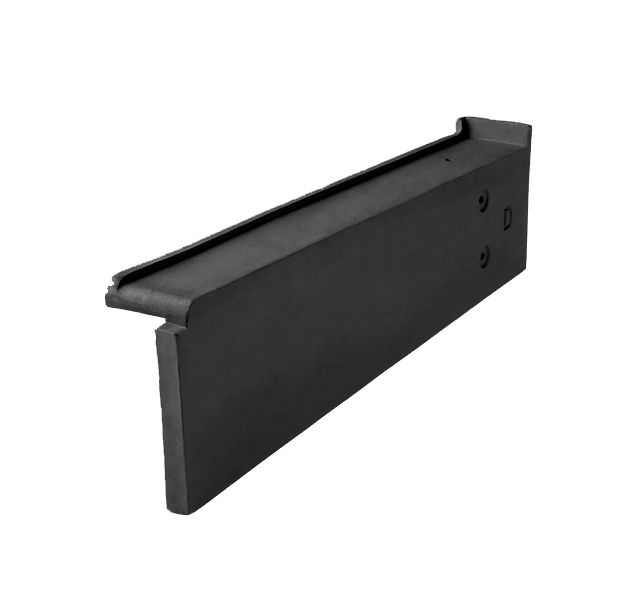

Gable rake left

Unit weight: 2.1 kg
Width: 6.3 cm
Height: 11.5 cm
Length: 50.5 cm
Quantity per linear meter: 2.5

Gable rake right

Unit weight: 2.1 kg
Width: 6.3 cm
Height: 11.5 cm
Length: 50.5 cm
Quantity per linear meter: 2.5

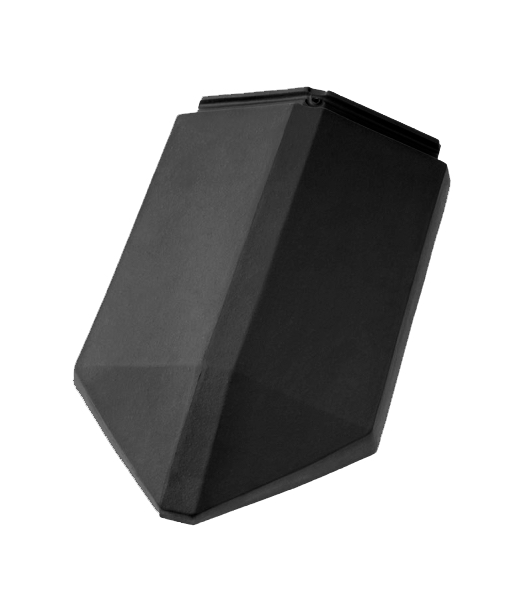

Ridge end cap

Unit weight: 2.4 kg
Width: 24.7 cm
Height: 10.5 cm
Length: 29.5 cm

Ridge tile

Unit weight: 4.5 kg
Width: 26.7 cm
Height: 8.2 cm
Length: 44 cm
Quantity per linear meter: 2.5

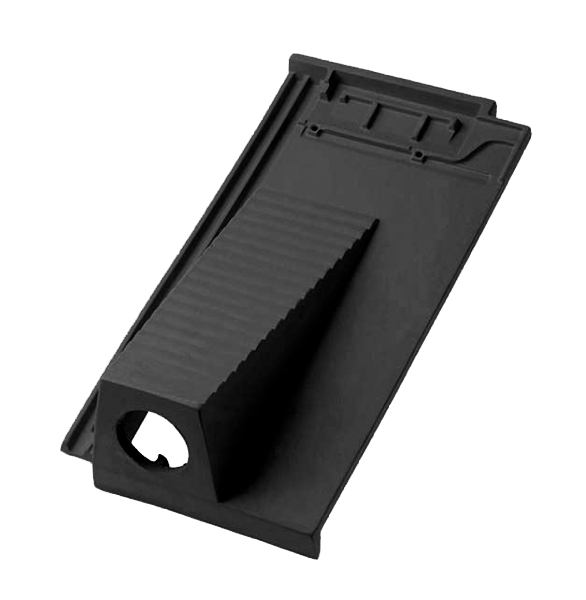

Tube passage tile

Unit weight: 4.91 kg
Width: 25.4 cm
Height: 5.3 cm
Length: 48 cm

Ventilation tile

Unit weight: 3.9 kg
Width: 25.4 cm
Height: 5.3 cm
Length: 48 cm


Half tile

Unit weight: 2 kg
Width: 14.5 cm
Height: 5.3 cm
Length: 48 cm
Quantity per linear meter: 2.5

Hip starter

Unit weight: 3 kg
Width: 26.7 cm
Height: 8.2 cm
Length: 44 cm


Chimney support tile

Unit weight: 4.2 kg
Width: 25.1 cm
Height: 18 cm
Length: 48.5 cm

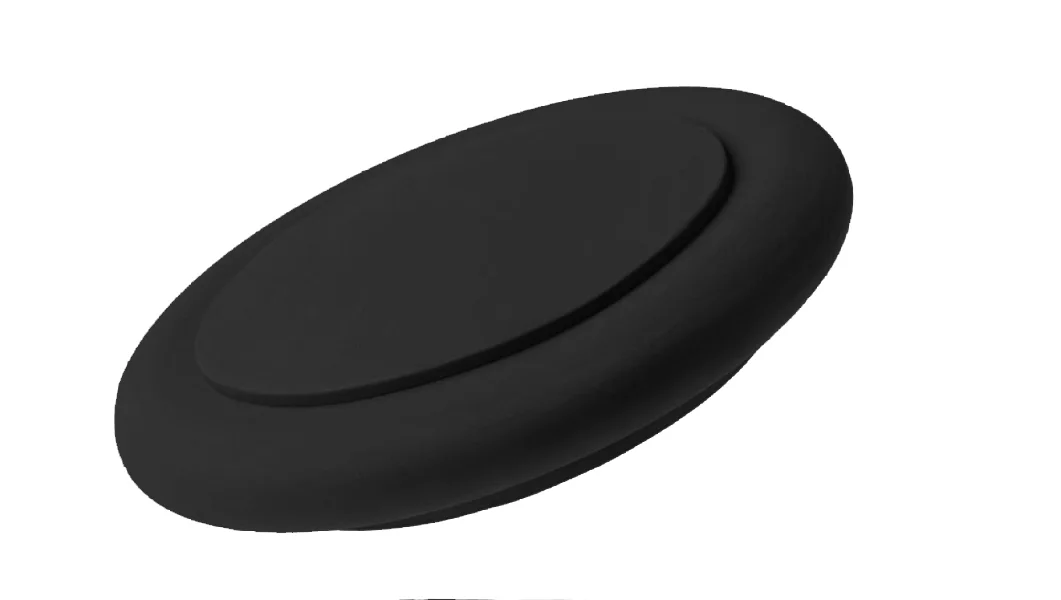

Chimney cap for
Chimney support tile
