MARSELLA
Marsella roof tile is specifically designed for the rehabilitation and heritage market. Whether it’s restoration, re-roofing or a new roof, Marsella is the perfectly adaptive tile used in the majority of Australian buildings.
For projects requiring heritage compliancy and flexibility, please refer to our flyers for 'Marsella Heritage' and 'Marsella Flex'.
COLOUR RANGE
TECHNICAL INFORMATION
Tile Dimendsion: 44,5 x 26,7 cm
Tile Weight: 3,7 kg
Batten measures: 35 - 39 cm
Tiles per SQM: 11,4 - 13
Click on BIM/CAD to request the respective documents
DOWNLOADS
Marsella Brochure
Marsella Flyer
Technical
Marsella Flex
Marsella Heritage
FITTINGS

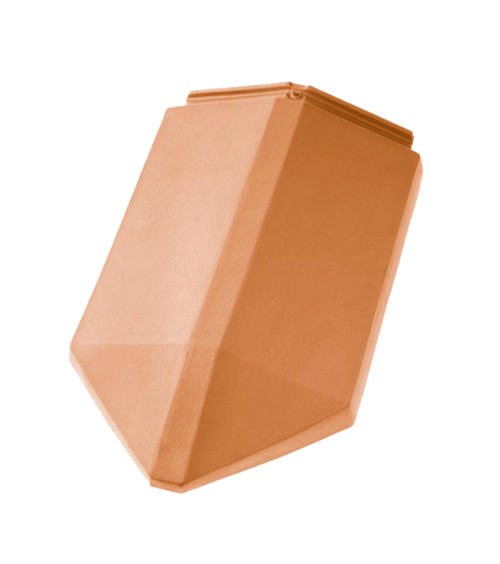

3-way apex
Unit weight: 3.8 kg
Width: 43.5 cm
Height: 10.5 cm
Length: 37.5 cm
4-way apex
Unit weight: 3.4 kg
Width: 32 cm
Height: 8 cm
Length: 32 cm

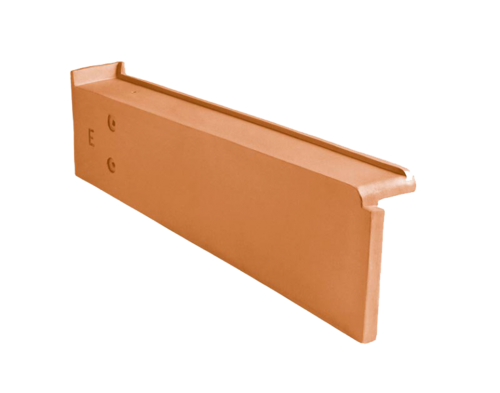

Barge tile left
Unit weight: 2.1 kg
Width: 6.3 cm
Height: 11.5 cm
Length: 50.5 cm
Quantity per linear meter: 2.5
Barge tile right
Unit weight: 2.1 kg
Width: 6.3 cm
Height: 11.5 cm
Length: 50.5 cm
Quantity per linear meter: 2.5
Ridge end cap
Unit weight: 2.4 kg
Width: 24.7 cm
Height: 10.5 cm
Length: 29.5 cm

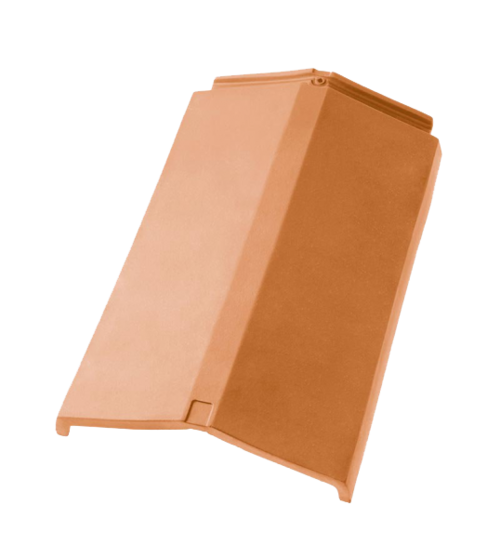

Ridge tile
Unit weight: 4.5 kg
Width: 26.7 cm
Height: 8.2 cm
Length: 44 cm
Quantity per linear meter: 2.5
Tube passage tile
Unit weight: 4.91 kg
Width: 25.4 cm
Height: 5.3 cm
Length: 48 cm

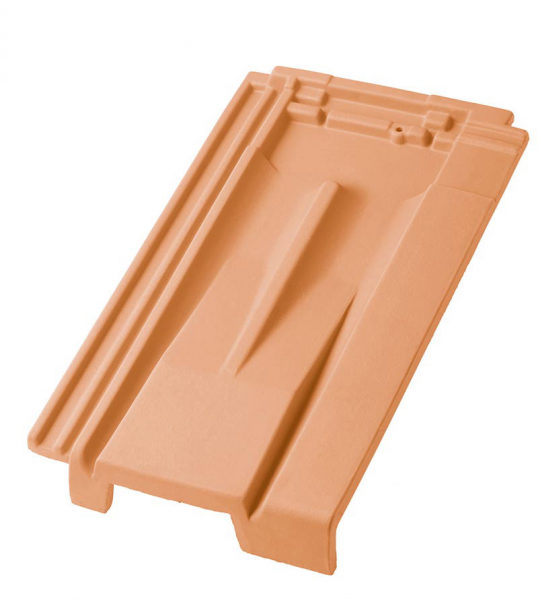

Ventilation tile
Unit weight: 3.9 kg
Width: 25.4 cm
Height: 5.3 cm
Length: 48 cm
Half tile
Unit weight: 2 kg
Width: 14.5 cm
Height: 5.3 cm
Length: 48 cm
Quantity per linear meter: 2.5
Hip starter
Unit weight: 3 kg
Width: 26.7 cm
Height: 8.2 cm
Length: 44 cm
Chimney support tile
Unit weight: 4.2 kg
Width: 25.1 cm
Height: 18 cm
Length: 48.5 cm
Chimney cap for Chimney support tile
