onda roof tile

Specifications

3.7 kg
12
38.5 cm
6
262 x 444 mm

Tile weight
Tiles per sqm (coverage)
Batten measures
Tiles per pack
Dimension

technical specifications


Downloads



ONDA 5 Brochure

ONDA 5 Flyer

ONDA 2 Brochure

ONDA 2 Flyer

Technical Drawings

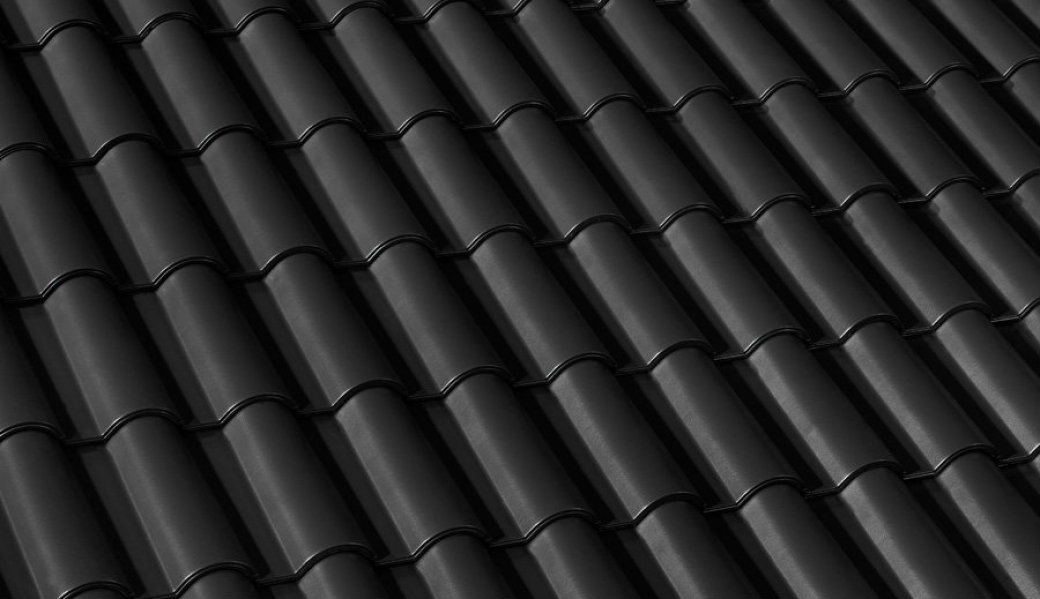

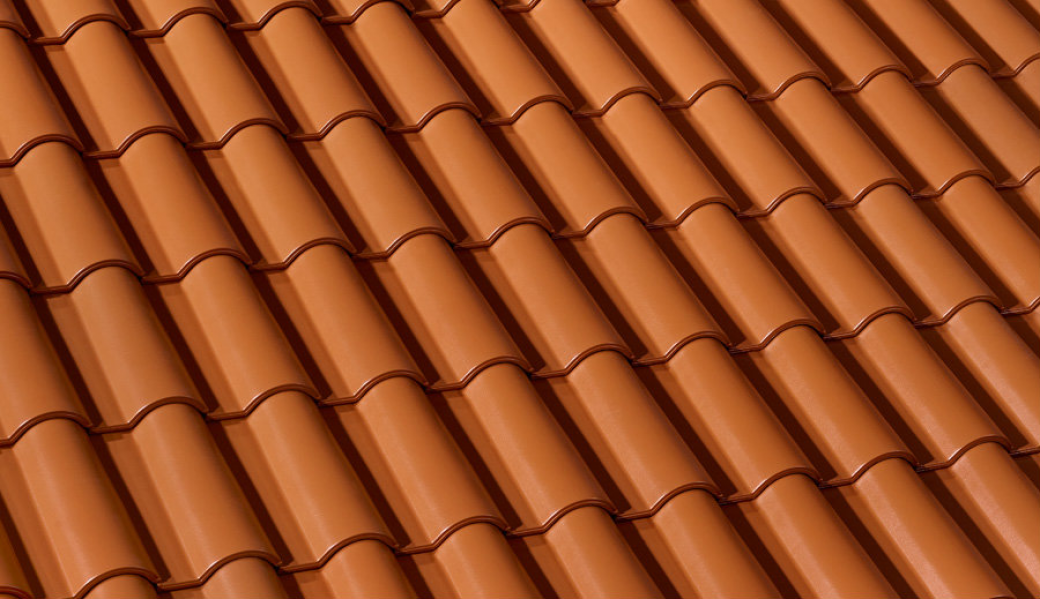

Colours

Portfolio


Fittings

3-way apex

Unit weight: 3.36 kg

3-way apex diagram

Universal hip starter

Unit weight: 3.4 kg
Width: 32 cm
Height: 8 cm
Length: 32 cm

universal hip starter diagram

Gable rake left

Unit weight: 2.53 kg
Width: 17 cm
Height: 7 cm
Length: 48.5 cm

gable rake left diagram

Gable rake right

Unit weight: 2.53 kg
Width: 17 cm
Height: 7 cm
Length: 48.5 cm

gable rake right diagram

Ridge end

Unit weight: 1.76 kg
Width: 22.7 cm
Height: 7.5 cm
Length: 26.7 cm

ridge end

Ridge tile

Unit weight: 2.9 kg
Width: 22.7 cm
Height: 8.5 cm
Length: 44 cm

ridge tile

Under ridge wedge

Unit weight: 1 kg
Width: 12.5 cm
Height: 6 cm
Length: 22 cm
Quantity per linear meter: 10

under ridge wedge

Ventilation tile

Unit weight: 3.22 kg
Width: 26 cm
Height: 6.5 cm
Length: 44 cm

ventilation tile diagram

Half tile

Unit weight: 1.73 kg
Width: 14.5 cm
Height: 5 cm
Length: 44 cm

half tile diagram

Chimney support

Unit weight: 3.63 kg
Width: 26 cm
Height: 14 cm
Length: 44 cm

chimney support diagram


Chimney and chimney cap for chimney support
